DIN-Rail In-Line Surge Protector
Photo may vary from actual product

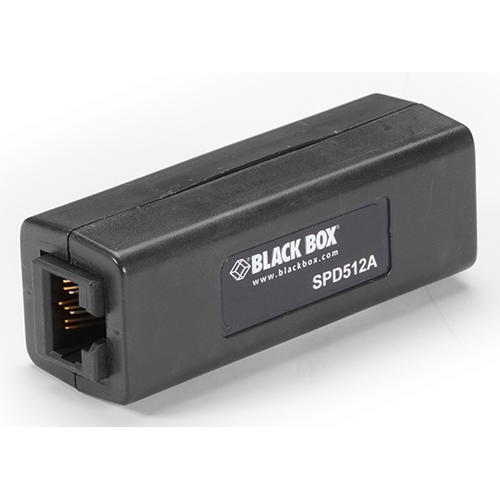

SPD512A: 10/100/1000TX, RS422/423/485
SPD512A: 10/100/1000TX, RS422/423/485


DIN-Rail In-Line Surge Protector


In-line surge protection in a compact DIN-rail mount format.


  • Protect data lines with state-of-the-art avalanche diode and thyristor technology.
  • Maximize uptime by protecting data lines at the source.
  • Low shunt capacitance reduces signal loss.

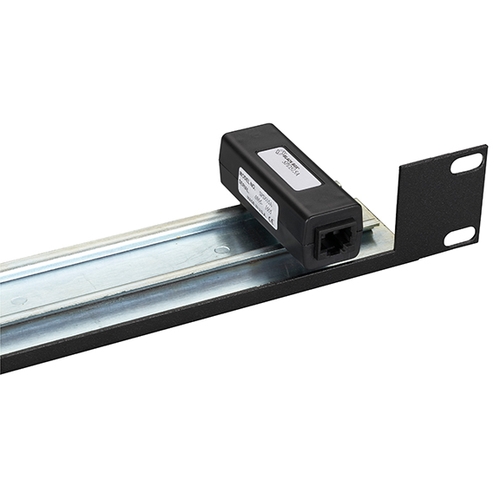

  • Fit up to 16 compact in-line surge protectors in only 1U of rack space with our Rackmount DIN-Rail Shelf.

  Product       Code   Unit price   Quantity


10/100/1000TX, RS422/423/485
  DIN-Rail In-Line Surge Protector
DIN-Rail In-Line Surge Protector
  SPD512A
On request

Add to shopping basket

Peak Pulse Current —
SPD512A: 100 Amps;

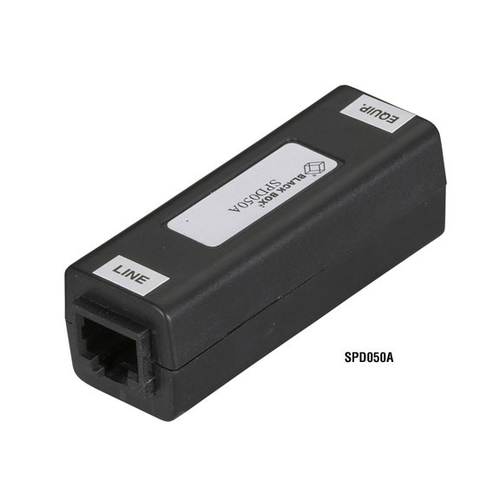

SPD050A: 50 Amps;
SPD075A: Pins 1, 2, 3, 6: 132 Amps, Pins 4, 5, 7, 8: 50 Amps;

Response Time — Less than 5 nanoseconds

Shunt Capacitance (Maximum) —
SPD512A: <8pF;
SPD050A: <75pF;
SPD075A: <25pF (Ethernet lines only);

Standard Clamp Voltage —
SPD512A: 7.5 Volts;
SPD050A: 60 Volts;
SPD075A: Pins 1, 2, 3, 5: 7.5 Volts, Pins 4, 5, 7, 8: 60 Volts;
